Model
B757- 200 x 43
  • Max. payload（With ULDs）
    29.5t
  • Range with Maximum Payload
    2160NM
  • Max. capacity(Theor. Vol.）
    226m³
Length of aircraft
B737-800 39.5m
B757-200 47.3m
B767-300 54.9m
B747-400 70.6m
Search
Note: The inquiry result is merely for illustration of one-way flight range for corresponding aircraft model.

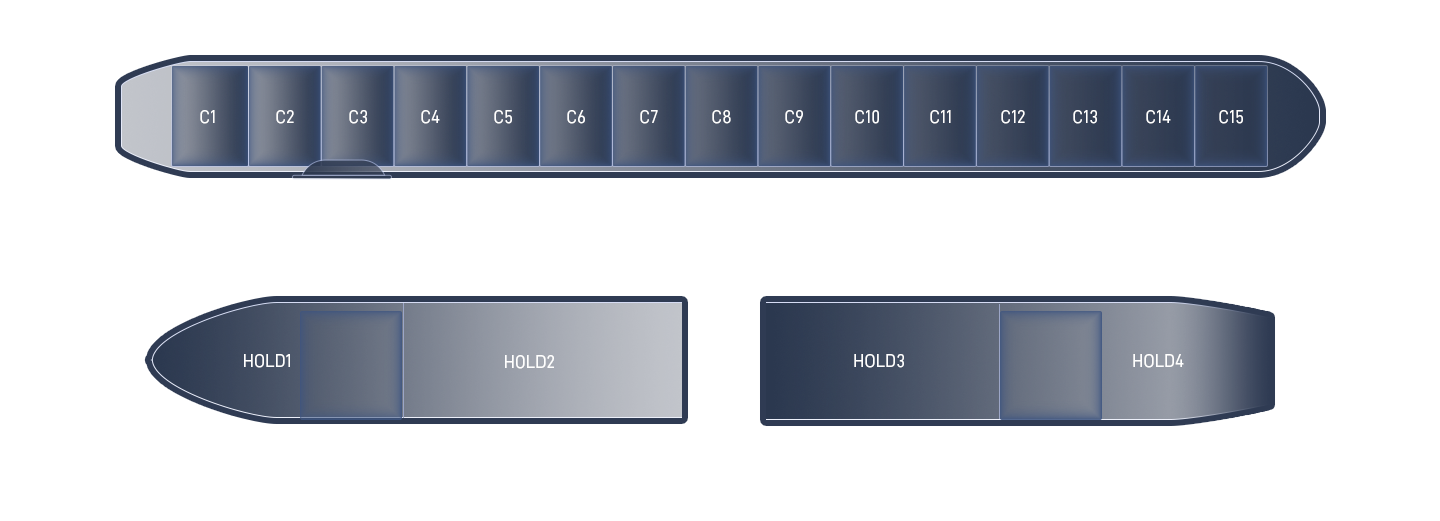

Cargo hold layout
Note:The cargo hold loading plan is for reference only.
The actual operation shall be subject to on-site arrangements.

  • Main deck can accommodate ULDs
    15ULDs
  • Lower deck can accommodate ULDs
    50.79m³
757-200机舱布局图
ULD
Compatible ULDs Type
 ULDs
（Loading Restr.）		 Dimension Dimension Inner Volume Tare Weight Maximum Gross Weight Compatible Compartment
PAG
 AAX

3.18*2.24*0.02m

 \

105KG（Include net）

90KG（Without net）

 6032KG Main deck
AAY
 AAX

3.18*2.24*2.08m

 12.22m³

198KG(Aluminum alloy panel)

 6032KG Main deck
LAY
 AAX

3.18*2.24*2.08m

 11.7m³

220KG

 6033KG Main deck
